Screw Dehydrator

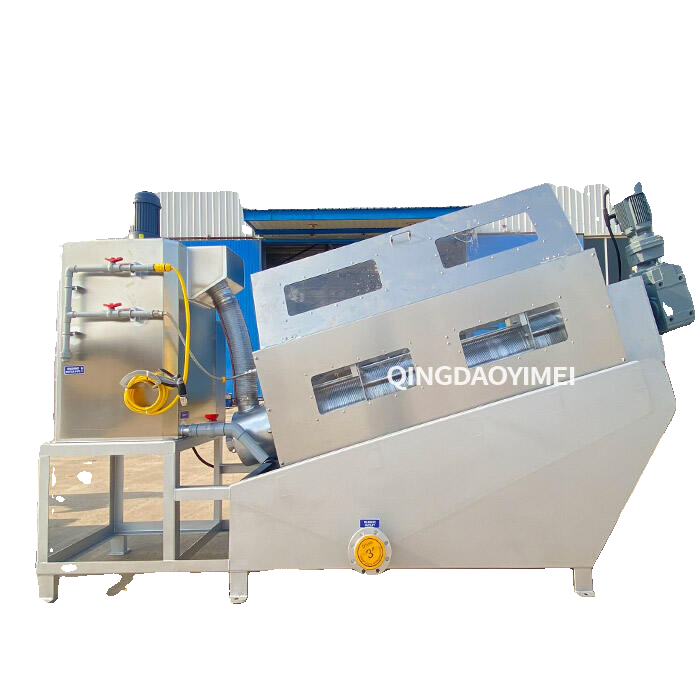

Multi Disk Sludge Dewatering Screw Press Sludge Dewatering Screw

A multi-disk screw press for solid-liquid separation that dewaters municipal and industrial sludge using the extrusion force created by the changing screw diameter and pitch. It suits a wide concentration range and offers self-cleaning operation with low energy and water consumption.

  • Self-cleaning, anti-clogging design
  • Handles low to high concentration sludge
  • SS304 stainless steel construction
  • Low energy and water consumption
Model Range
YMDL101 to YMDL403A
Material
SS304 Stainless Steel
Capacity (YMDL101)
6-12 kg/h dry solids; 3 m³/h at 2000 mg/L
Capacity (YMDL403A)
180-1000 kg/h dry solids; 72 m³/h at 2000 mg/L
Sludge Concentration
2000-50000 mg/L
